Description

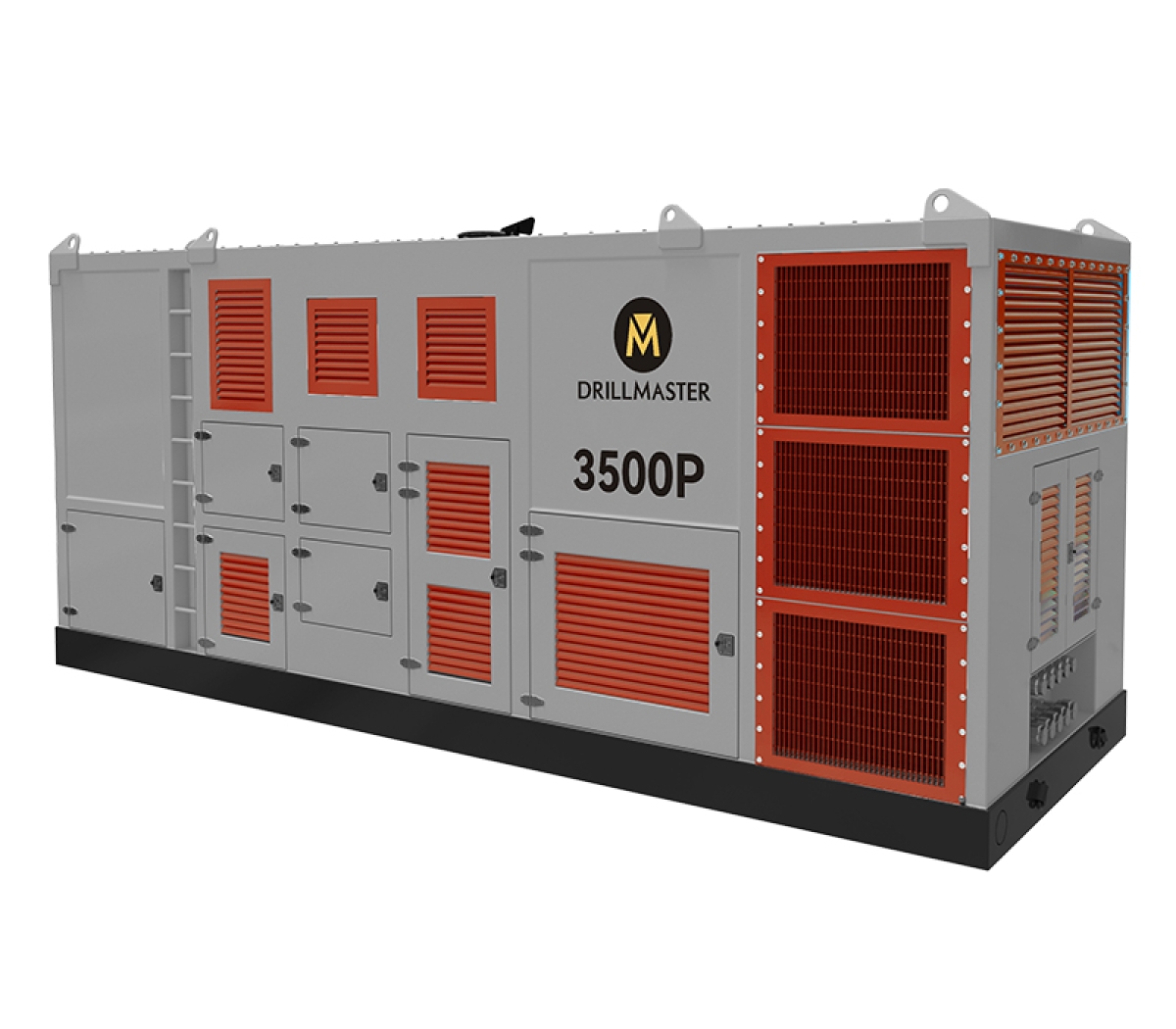

The hydraulic pump station is composed of main frame, engine assembly, gearbox, proportional hydraulic pump, extracorporeal circulation filtration system, cooling system and control system.
For different working conditions, relevant configurations of the gear oil self-cooling system will be added.
Currently, our company's power units utilize an open-circuit hydraulic system, which offers the following advantages:

Simple Structure and Lower Cost.
Good Heat Dissipation.
High Fluid Cleanliness.
Easy Maintenance
The design of the hydraulic tank and diesel tank integrated on the main frame makes the size more compact

Parameters

Key Technical Parameter	3500P
Engine Type	S16R-Y1PTAA2-3
Max. Power(KW/HP)	1939/2599
Max. Frequency(rpm)	1500
Working Pressure(bar)	320
Max. Oil Flow(L/min)	3500
Diesel Tank Volume(L)	1420
Hydraulic Oil Tank Volume(L)	6400
Length(mm)	8200
Width(mm)	2920
Height(mm)	3600
Weight(kg)	38000
Suitable for Vibratory Hammer Models	MZ-800B MZ-800BX2
Suitable for Impact Hammer Models	/
