Description

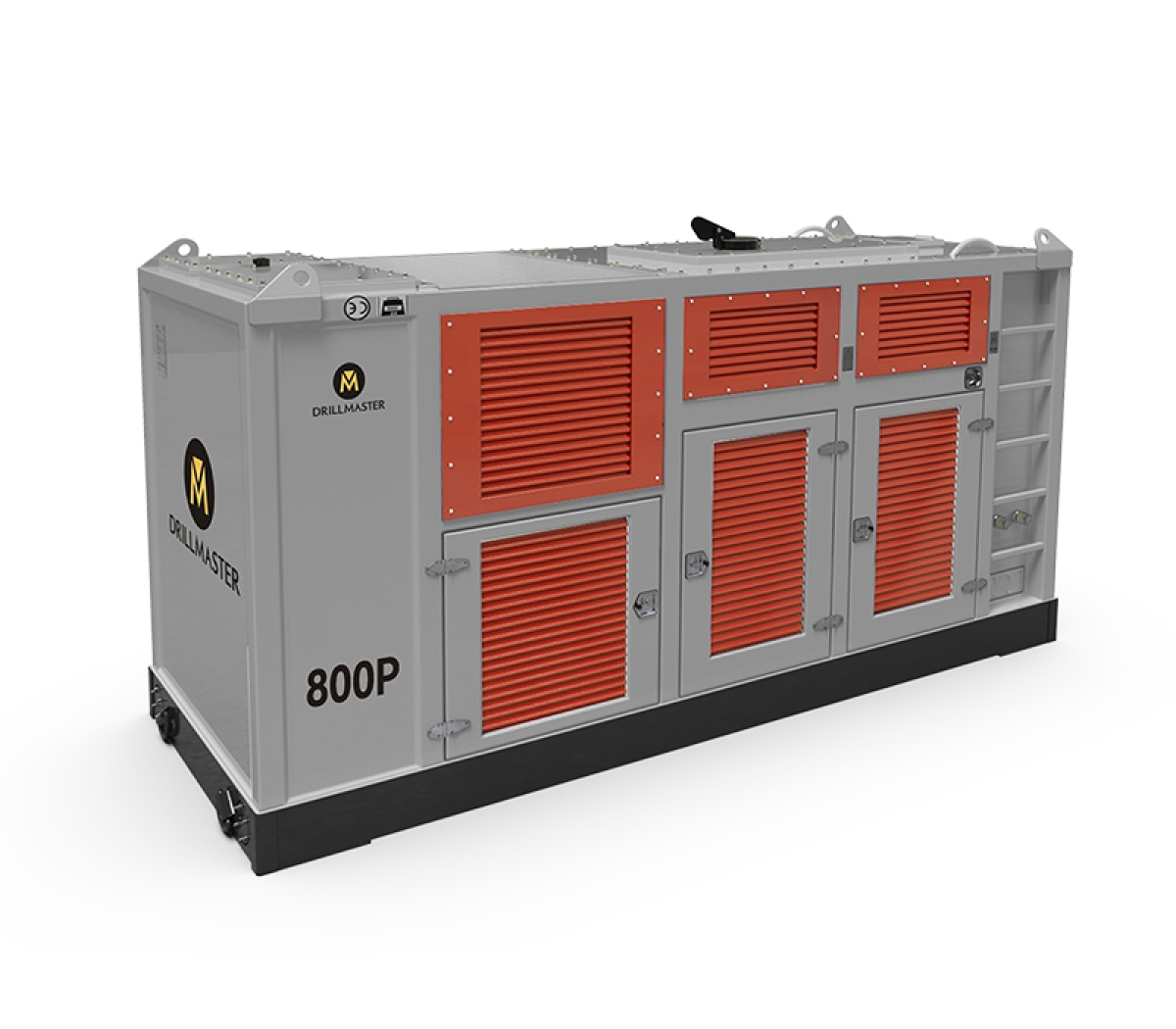

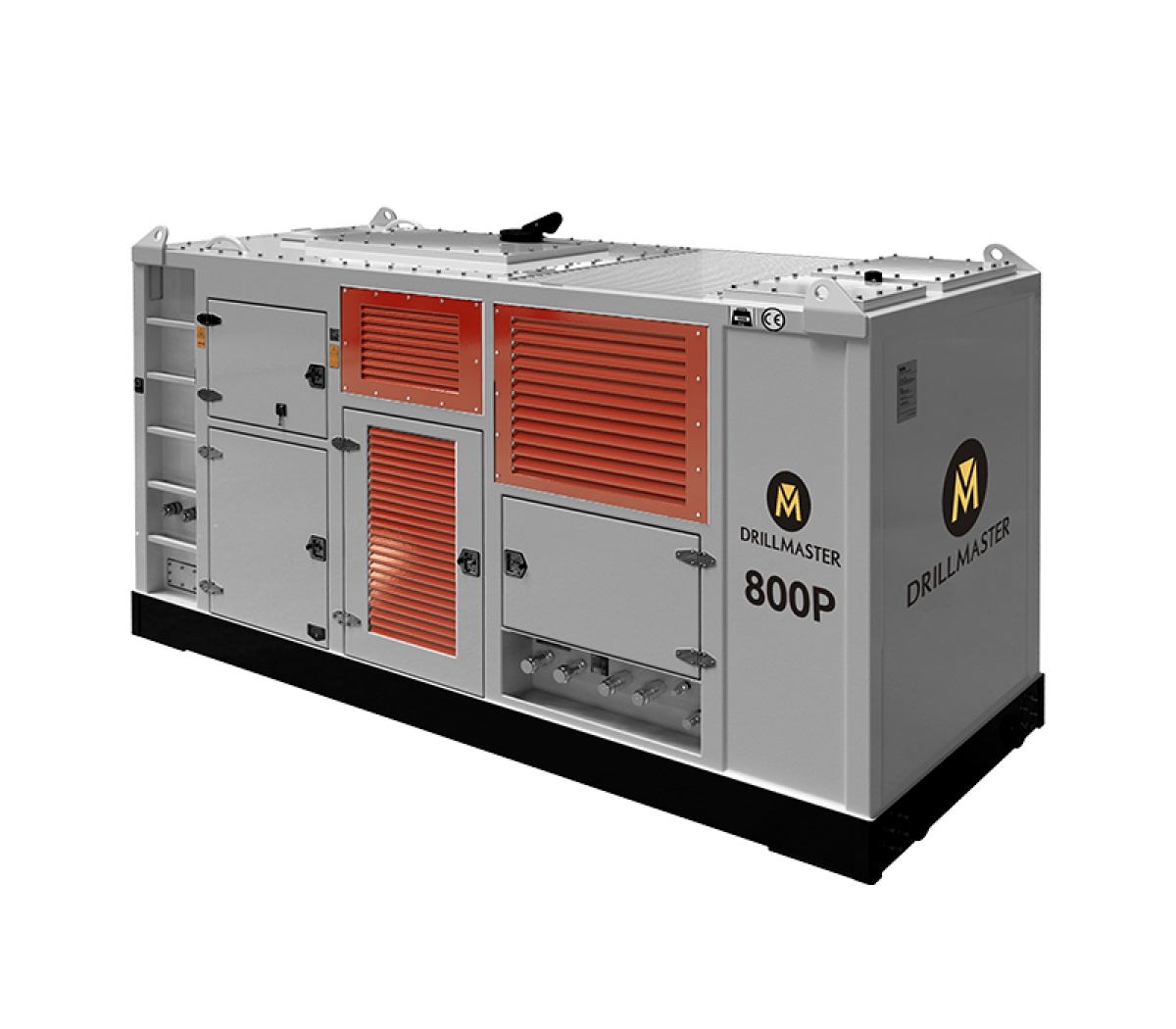

The hydraulic pump station is composed of main frame, engine assembly, gearbox, proportional hydraulic pump, extracorporeal circulation filtration system, cooling system and control system.
For different working conditions, relevant configurations of the gear oil self-cooling system will be added.
Currently, our company's power units utilize an open-circuit hydraulic system, which offers the following advantages:

Simple Structure and Lower Cost.
Good Heat Dissipation.
High Fluid Cleanliness.
Easy Maintenance
The design of the hydraulic tank and diesel tank integrated on the main frame makes the size more compact

Parameters

Key Technical Parameter	800P
Engine Type	CAT C18
Max. Power(KW/HP)	522/700
Max. Frequency(rpm)	2100
Working Pressure(bar)	320
Max. Oil Flow(L/min)	800
Diesel Tank Volume(L)	600
Hydraulic Oil Tank Volume(L)	2200
Length(mm)	4450
Width(mm)	1850
Height(mm)	2520
Weight(kg)	9000
Suitable for Vibratory Hammer Models	MZ-230 MZ-230F MZ-230B MZ-280L
Suitable for Impact Hammer Models	MC-35 MC-40
