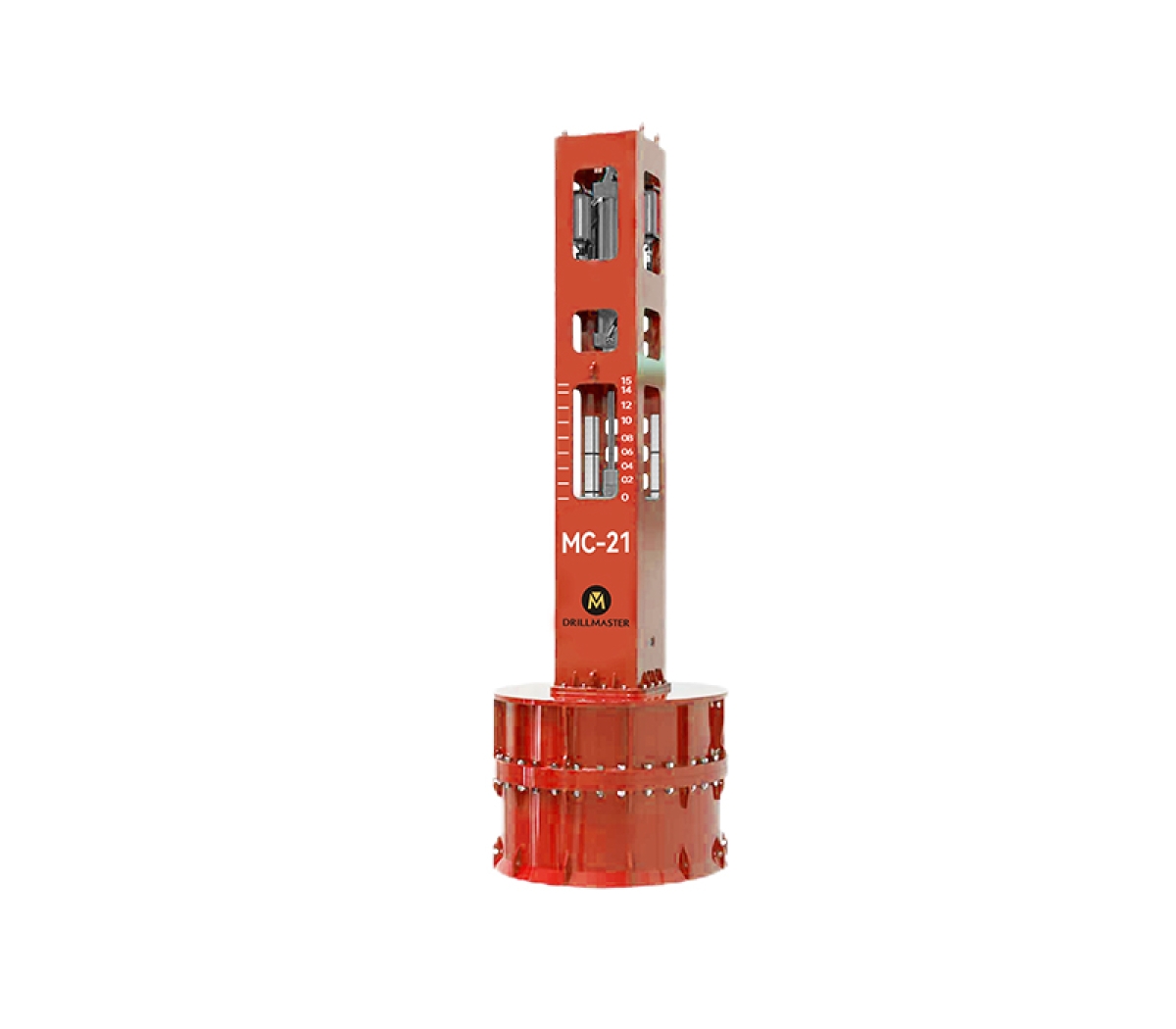

Impact Hammer Pile Driving MC-21

Applications:

This model of hydraulic impact hammer is widely suitable for various types of pile foundation construction, from PHC piles to steel pipe piles and Larssen sheet piles.
It performs exceptionally well in driving and extracting composite piles, particularly in projects such as ports and wharves.

INQUIRY NOW

Impact Energy
315 KJ

Working Stroke
1500 mm

Impact Frequency
70/30 rpm

Ram Weight
21000 kg

DescriptionParameters

Description

Compared to diesel hammers and static pile drivers, it offers the advantages of environmental friendliness, energy efficiency, and high operational effectiveness.
The power unit can be configured with either a diesel engine or an electric motor.
This impact hammer is designed with an anti-idle strike feature, effectively protecting the hammer core and drive cap.
The pile cap incorporates a modular, variable-diameter design.

Parameters

Single Cylinder Lifting	MC-21
Impact Energy(KJ)	315
Working Stroke(mm)	1500
Impact Frequency(rpm)	70/30
Ram Weight(kg)	21000
Length Excluding Pile Cap(mm)	7500
Width Excluding Pile Cap(mm)	1350
Height Excluding Pile Cap(mm)	1580
Weight Excluding Pile Cap(kg)	31500
Recommended Power Pack	600P
