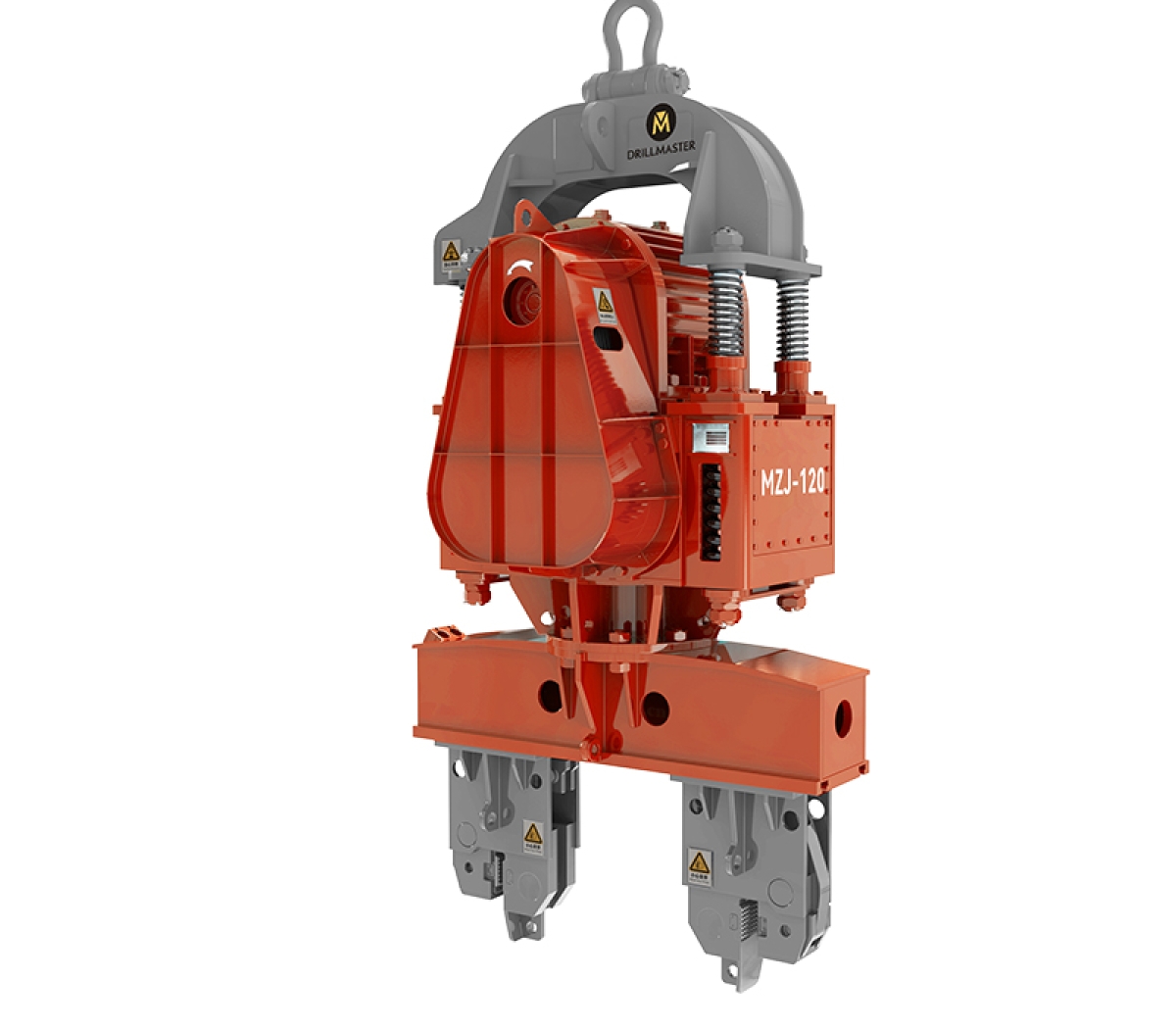

Sheet Pile Vibratory Hammer MZJ-120 for Piling

Applications:

Widely applicable to various types and specifications of piles,
it is particularly well-suited for soft ground improvement projects and the construction of vibro stone columns.

INQUIRY NOW

Motor Power
120 KW

Eccentric Moment
76 NM

Centrifugal Force
0-823 kN

Max. Frequency
1000 rpm

Max. Amplitude
12 mm

Max. Line Pull Force
392 kN

DescriptionParameters

Description

With substantial power and excitation force falling within the medium to large hammer range.
An upgraded resonance-free version is also available, making it suitable for construction on sensitive foundations.
It is environmentally friendly and energy-efficient.
Can be powered by generator sets as the energy source.

Parameters

Key Technical Parameter	MZ-120
Motor Power(KW)	120
Eccentric Moment(NM)	76
Centrifugal Force(kN)	0-823
Max. Frequency(rpm)	1000
Max. Amplitude(mm)	12
Max. Line Pull(kN)	392
Length(mm)	1850
Width(mm)	1350
Height(mm)	2500
Weight Excluding Clamps(kg)	7000
Wire Cable(mm²)	70
Clamp	Single, Double Clamp
Clamp Scope(mm)	600-2000
Generator Capacity(kW)	300
