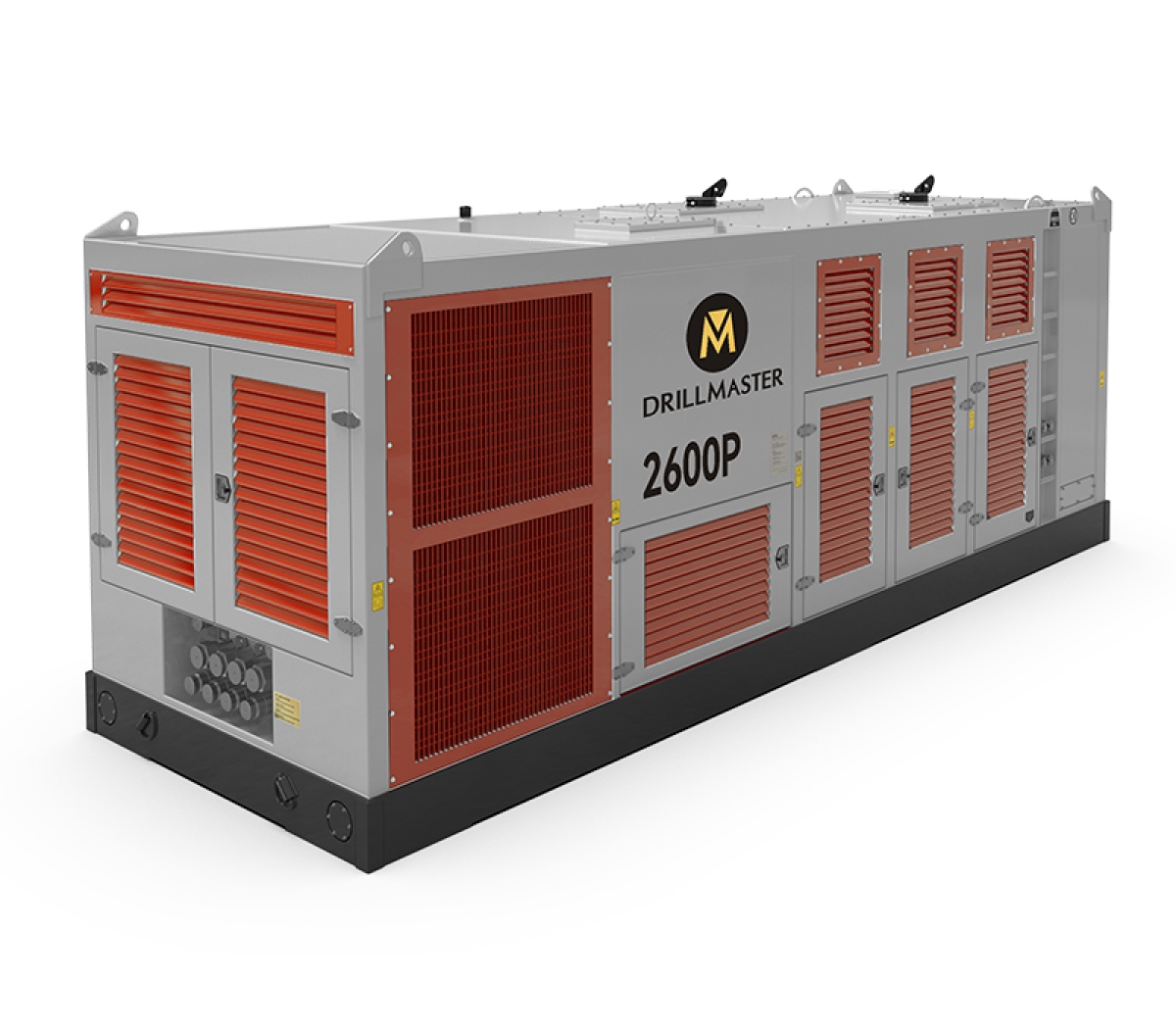

Name: Hydraulic Power Pack 2600P Suppliers
SKU: 108
Rating: 5 (1107 reviews)

Description

The hydraulic pump station is composed of main frame, engine assembly, gearbox, proportional hydraulic pump, extracorporeal circulation filtration system, cooling system and control system.
For different working conditions, relevant configurations of the gear oil self-cooling system will be added.
Currently, our company's power units utilize an open-circuit hydraulic system, which offers the following advantages:

Simple Structure and Lower Cost.
Good Heat Dissipation.
High Fluid Cleanliness.
Easy Maintenance
The design of the hydraulic tank and diesel tank integrated on the main frame makes the size more compact

Parameters

Key Technical Parameter	2600P
Engine Type	CUMMINS
Max. Power(KW/HP)	1492/2000
Max. Frequency(rpm)	2000
Working Pressure(bar)	320
Max. Oil Flow(L/min)	2600
Diesel Tank Volume(L)	1400
Hydraulic Oil Tank Volume(L)	5200
Length(mm)	7310
Width(mm)	2360
Height(mm)	2750
Weight(kg)	23500
Suitable for Vibratory Hammer Models	MZ-600
Suitable for Impact Hammer Models	MC-110 MC-120 MC-130 MC-150 MC-180
