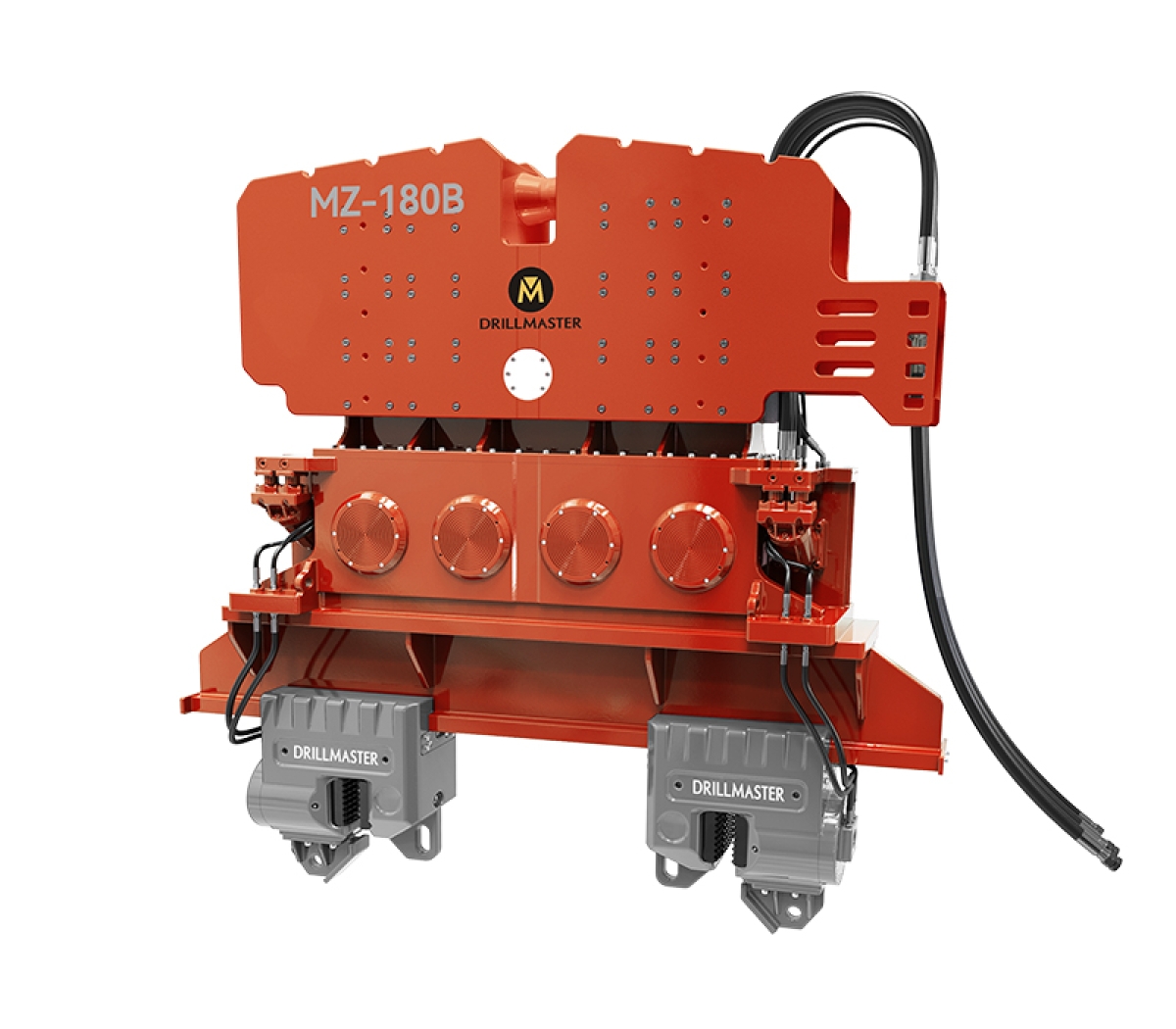

Crane Suspended Vibro Pile Hammer MZ-180B

Applications:

It is particularly well-suited for driving long Larssen sheet piles and composite sheet piles.

Eccentric Moment
51 kg.m

Max. Frequency
1800 rpm

Centrifugal Force
1810 kN

Max. Line Pull Force
600 kN

Max. Amplitude
32 mm

Dynamic Weight
5900 kg

DescriptionParameters

Description

If you can only purchase one hammer, the MZ-180B is undoubtedly the recommended choice, as it boasts the widest application range in foundation construction.

Its eccentric moment, excitation force, and amplitude are perfectly matched, and it adopts a single set of eccentric blocks, resulting in a moderate overall height.

Key Technical Parameter	MZ-180B
Eccentric Moment(kg.m)	51
Max. Frequency(rpm)	1800
Centrifugal Force(kN)	1810
Max. Line Pull Force(kN)	600
Max. Amplitude(mm)	32
Max. Oil Flow(L/min)	680
Length(mm)	2845
Width(mm)	530
Height(mm)	1880
Dynamic Weight(kg)	5900
Pipe Pile Clamp Recommended	MZ-120DCX2
Sheet Pile Clamp Recommended	MZJ-200
Recommended Power Pack	600P
