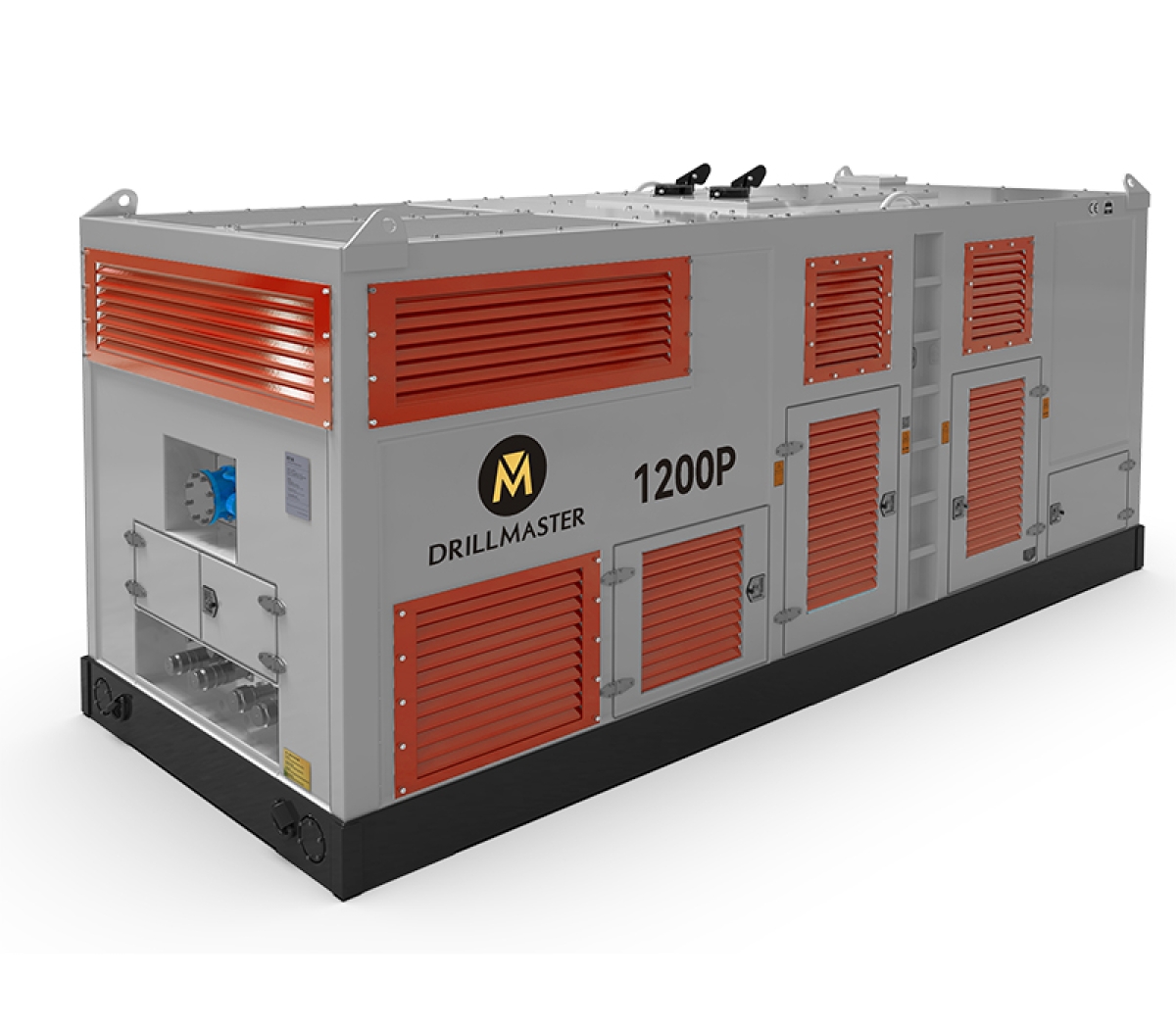

Hydraulic Power Pack 1200P Suppliers
Hydraulic Power Pack 1200P Suppliers

Hydraulic Power Pack 1200P Suppliers

Applications:

Providing power for vibratory hammers, impact hammers, and other construction machinery.

INQUIRY NOW

Engine Type
KTA38

Max. Power
895/1200 KW/HP

Max. Frequency
1800 rpm

Working Pressure
320 bar

Max Oil Flow
1200 L/min

Engine Emission Standard
Stage II

DescriptionParameters

Description

The hydraulic pump station is composed of main frame, engine assembly, gearbox, proportional hydraulic pump, extracorporeal circulation filtration system, cooling system and control system.
For different working conditions, relevant configurations of the gear oil self-cooling system will be added.
Currently, our company's power units utilize an open-circuit hydraulic system, which offers the following advantages:
  • Simple Structure and Lower Cost.
  • Good Heat Dissipation.
  • High Fluid Cleanliness.
  • Easy Maintenance
  • The design of the hydraulic tank and diesel tank integrated on the main frame makes the size more compact

Parameters

Key Technical Parameter 1200P
Engine TypeKTA38
Max. Power(KW/HP)895/1200
Max. Frequency(rpm)1800
Working Pressure(bar)320
Max. Oil Flow(L/min)1200
Diesel Tank Volume(L)1000
Hydraulic Oil Tank Volume(L)4200
Length(mm)6050
Width(mm)2350
Height(mm)2820
Weight(kg)20000
Suitable for Vibratory Hammer ModelsMZ-300
MZ-400
MZ-300L
MZ-300X2
Suitable for Impact Hammer ModelsMC-50
MC-60
