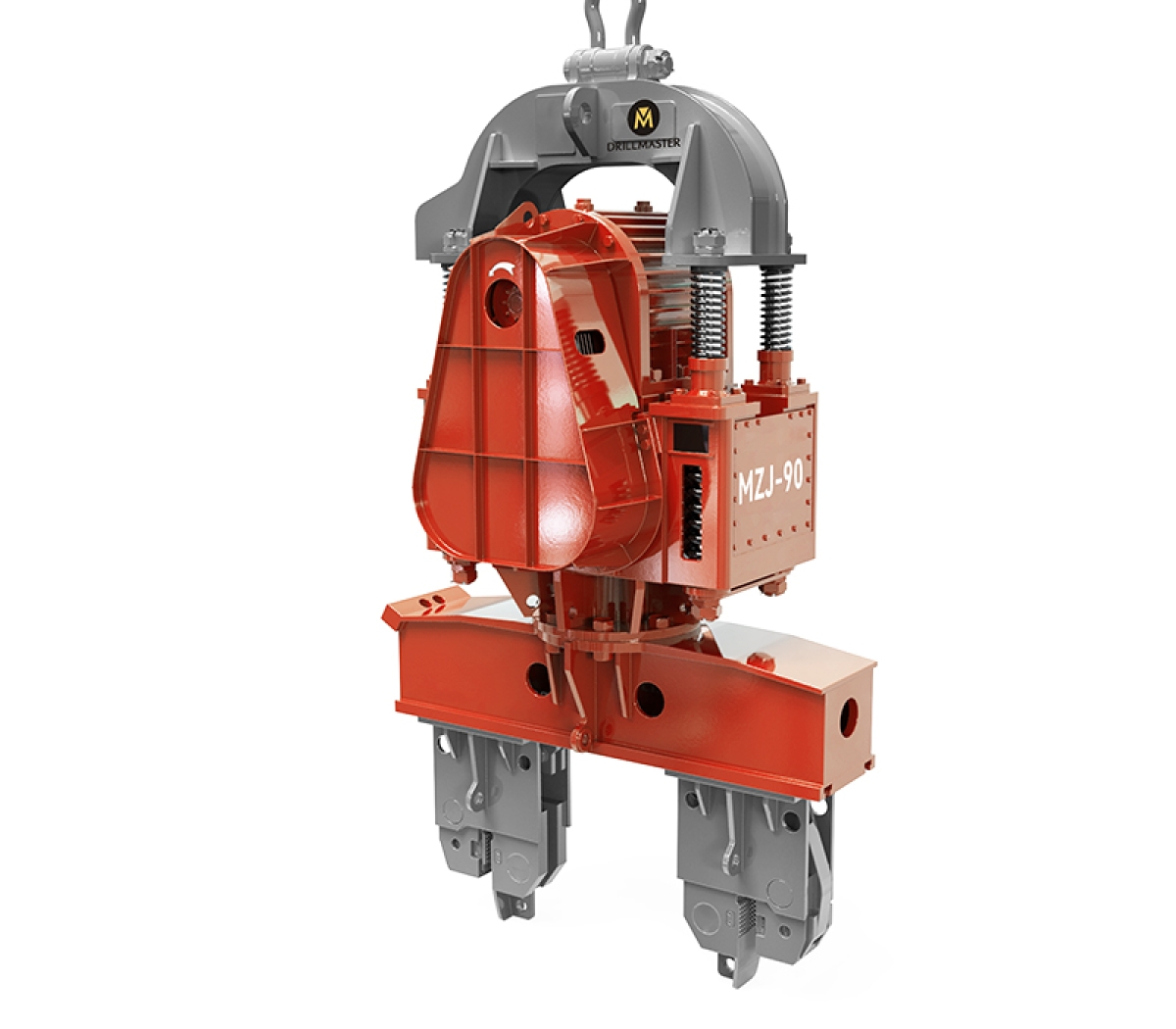

Electric Vibro Hammer MZJ-90 for Sheet Pile Driving

Applications:

As the most commonly used electric vibratory hammer, it is widely employed for driving and extracting Larssen sheet piles and steel pipe piles in steel trestle bridges.
Due to its compact size and lightweight design, it often enables the driving and extraction of Larssen sheet piles and steel pipe piles using a single clamp.

INQUIRY NOW

Motor Power
90 KW

Eccentric Moment
58 NM

Centrifugal Force
0-579 kN

Max. Frequency
960 rpm

Max. Amplitude
11.5 mm

Max. Line Pull Force
254 kN

DescriptionParameters

Description

This model offers exceptional cost-effectiveness and can utilize on-site electricity as its power source.
Compared to hydraulic vibratory hammers of similar specifications, its cost is approximately one-third.
It is energy-efficient and environmentally friendly.
Equipped with variable frequency start-up technology, this model ensures smooth operation during both activation and shutdown.

Parameters

Key Technical Parameter	MZ-90
Motor Power(KW)	90
Eccentric Moment(NM)	58
Centrifugal Force(kN)	0-579
Max. Frequency(rpm)	960
Max. Amplitude(mm)	11.5
Max. Line Pull(kN)	254
Length(mm)	1700
Width(mm)	1400
Height(mm)	2350
Weight Excluding Clamps(kg)	5700
Wire Cable(mm²)	50
Clamp	Single, Double Clamp
Clamp Scope(mm)	530-1500
Generator Capacity(kW)	250
