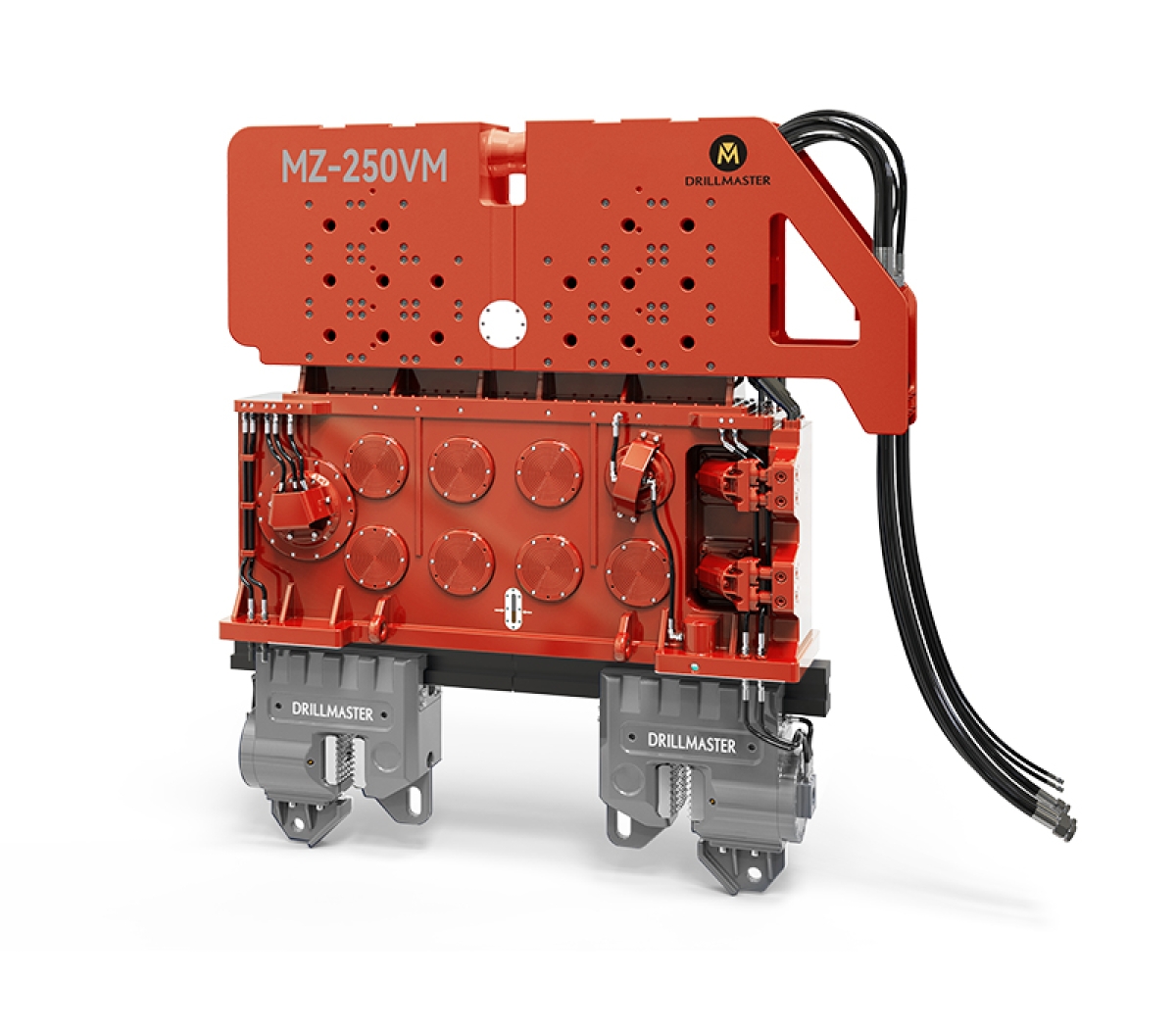

Pile Vibratory Driver MZ-250VM Resonance Free

Applications:

It is ideal for construction on sensitive foundations.

Eccentric Moment
0-42 kg.m

Max. Frequency
2300 rpm

Centrifugal Force
2430 kN

Max. Line Pull Force
800 kN

Max. Amplitude
19 mm

Dynamic Weight
7600 kg

DescriptionParameters

Description

This model operates without resonance during start-up and shutdown, features high rotational speed, and offers adjustable eccentricity.
It can be tuned to the corresponding eccentric moment range for different soil layers, effectively meeting pile driving requirements in various ground conditions.
The MZ-250VM is a medium-sized vibratory hammer suitable for a wider range of pile specifications.
It offers higher operational efficiency and greater mobility compared to static pile pressing equipment.

Key Technical Parameter	MZ-250VM
Eccentric Moment(kg.m)	0-42
Max. Frequency(rpm)	2300
Centrifugal Force(kN)	2430
Max. Line Pull Force(kN)	800
Max. Amplitude(mm)	19
Max. Oil Flow(L/min)	1060
Length(mm)	2910
Width(mm)	600
Height(mm)	2300
Dynamic Weight(kg)	7600
Pipe Pile Clamp Recommended	MZJ-160DCX2
Sheet Pile Clamp Recommended	MZJ-320
Recommended Power Pack	1000P
