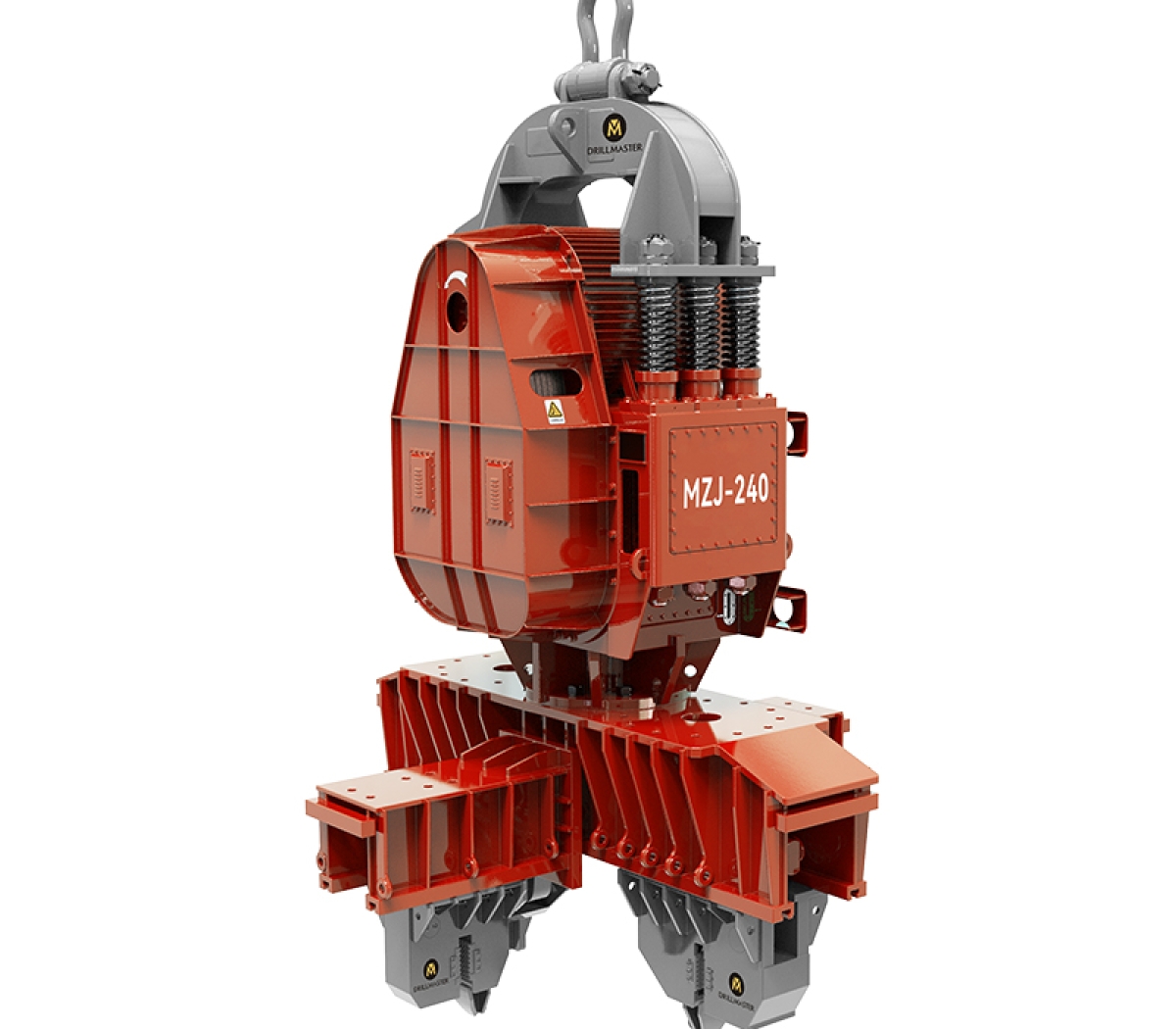

Crane Suspended Vibro Hammer MZJ-240 Vibratory Driver

Applications:

Widely applicable to various types and specifications of piles.
it is particularly well-suited for soft ground improvement projects and the construction of vibro stone columns.

INQUIRY NOW

Motor Power
240 KW

Eccentric Moment
184 NM

Centrifugal Force
0-1822 kN

Max. Frequency
960 rpm

Max. Amplitude
14 mm

Max. Line Pull Force
638 kN

DescriptionParametersRelated Projects

Description

With substantial power and excitation force falling within the medium to large hammer range.
An upgraded resonance-free version is also available, making it suitable for construction on sensitive foundations.
It is environmentally friendly and energy-efficient.
Can be powered by generator sets as the energy source.

Parameters

Key Technical Parameter	MZ-240
Motor Power(KW)	240
Eccentric Moment(NM)	184
Centrifugal Force(kN)	0-1822
Max. Frequency(rpm)	960
Max. Amplitude(mm)	14
Max. Line Pull(kN)	638
Length(mm)	2300
Width(mm)	1850
Height(mm)	3400
Weight Excluding Clamps(kg)	14500
Wire Cable(mm²)	120
Clamp	Double, Quadruple Clamp
Clamp Scope(mm)	800-3000
Generator Capacity(kW)	600
