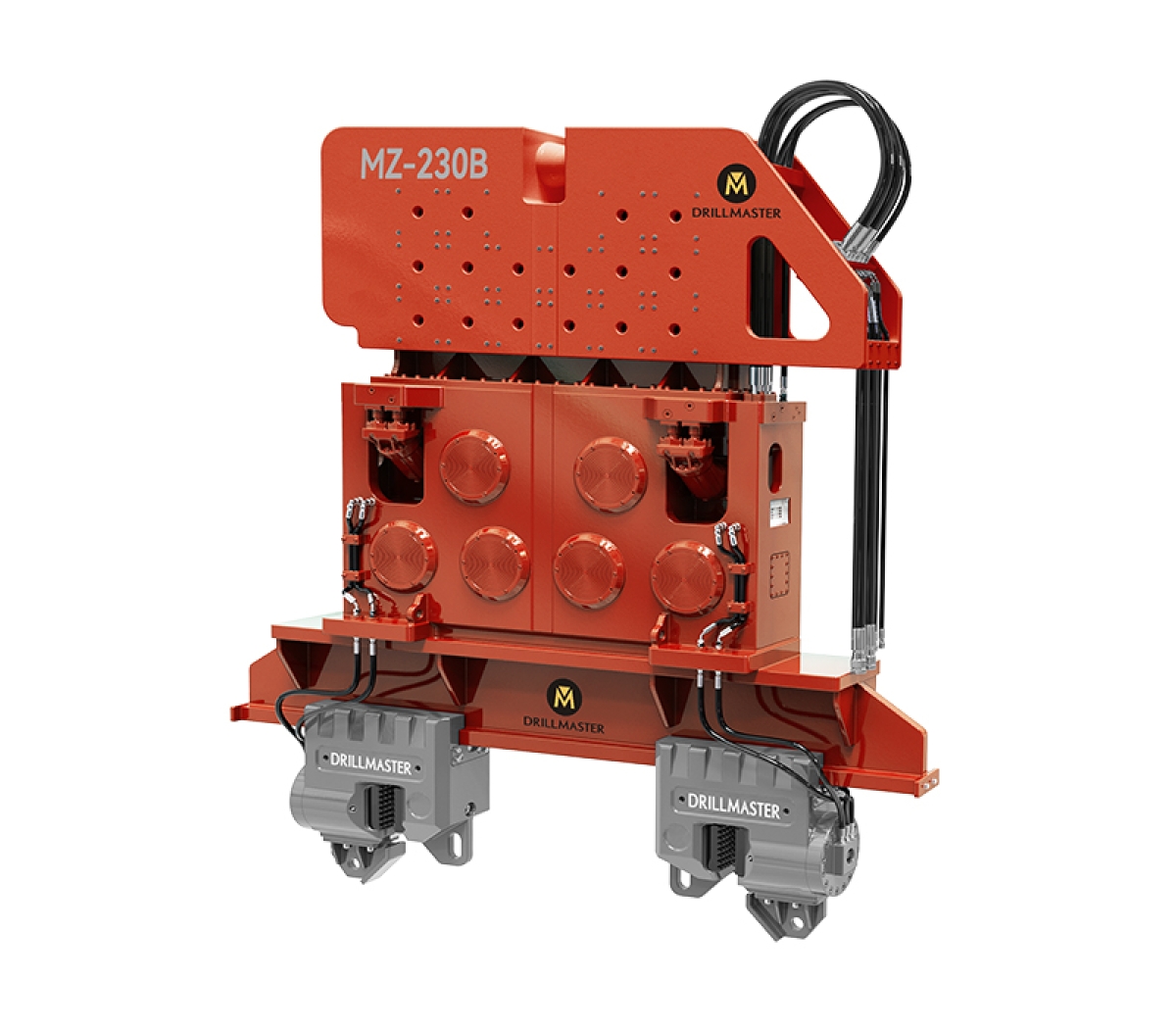

Vibrating Pile Driver MZ-230B Vibratory Hammer for Crane

Applications:

It offers inherent advantages in pile extraction tasks, particularly when working in sandy soil conditions.

Eccentric Moment
76 kg.m

Max. Frequency
1700 rpm

Centrifugal Force
2410 kN

Max. Line Pull Force
800 kN

Max. Amplitude
32 mm

Dynamic Weight
8180 kg

DescriptionParameters

Description

This hammer operates at high rotational speed, generating an excitation force of up to 2,410 kN (approximately 241 tons).
Despite its exceptionally high excitation force, the hammer itself is relatively lightweight. As a result, it can be paired with a smaller crane compared to other hammers with similar performance, leading to significant cost savings.

Key Technical Parameter	MZ-230B
Eccentric Moment(kg.m)	76
Max. Frequency(rpm)	1700
Centrifugal Force(kN)	2410
Max. Line Pull Force(kN)	800
Max. Amplitude(mm)	32
Max. Oil Flow(L/min)	800
Length(mm)	2400
Width(mm)	530
Height(mm)	2380
Dynamic Weight(kg)	8180
Pipe Pile Clamp Recommended	MZ-160DCX2
Sheet Pile Clamp Recommended	MZJ-320
Recommended Power Pack	800P
