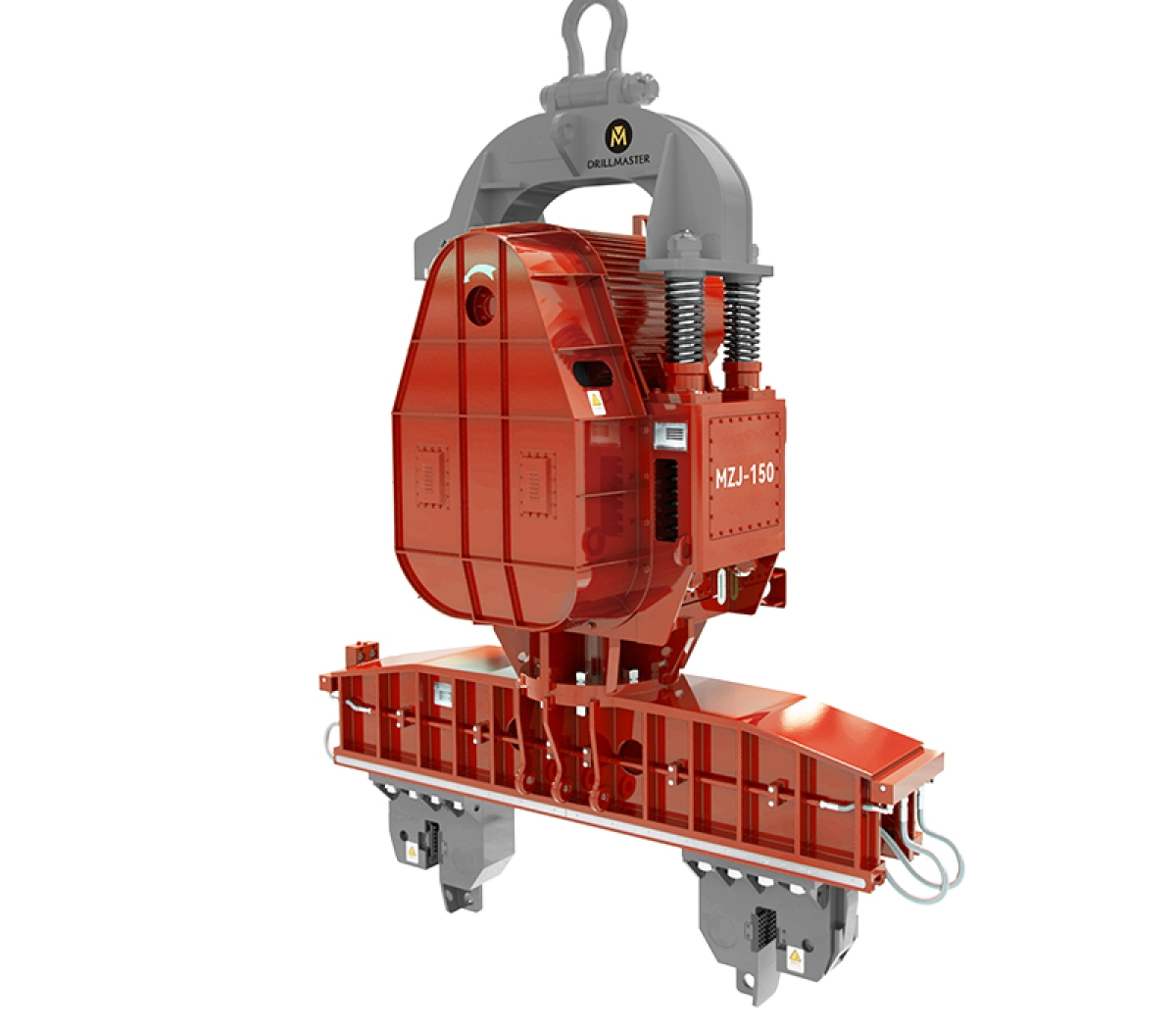

Vibrating Sheet Pile Hammer MZJ-150 Piling Vibro Equipment

Applications:

Widely applicable to various types and specifications of piles.
it is particularly well-suited for soft ground improvement projects and the construction of vibro stone columns.

INQUIRY NOW

Motor Power
150 KW

Eccentric Moment
114 NM

Centrifugal Force
0-1140 kN

Max. Frequency
960 rpm

Max. Amplitude
15 mm

Max. Line Pull Force
450 kN

DescriptionParameters

Description

With substantial power and excitation force falling within the medium to large hammer range.
An upgraded resonance-free version is also available, making it suitable for construction on sensitive foundations.
It is environmentally friendly and energy-efficient.
Can be powered by generator sets as the energy source.

Parameters

Key Technical Parameter	MZ-150
Motor Power(KW)	150
Eccentric Moment(NM)	114
Centrifugal Force(kN)	0-1140
Max. Frequency(rpm)	960
Max. Amplitude(mm)	15
Max. Line Pull(kN)	450
Length(mm)	1950
Width(mm)	1400
Height(mm)	3025
Weight Excluding Clamps(kg)	8700
Wire Cable(mm²)	70
Clamp	Single, Double Clamp
Clamp Scope(mm)	600-2500
Generator Capacity(kW)	350
