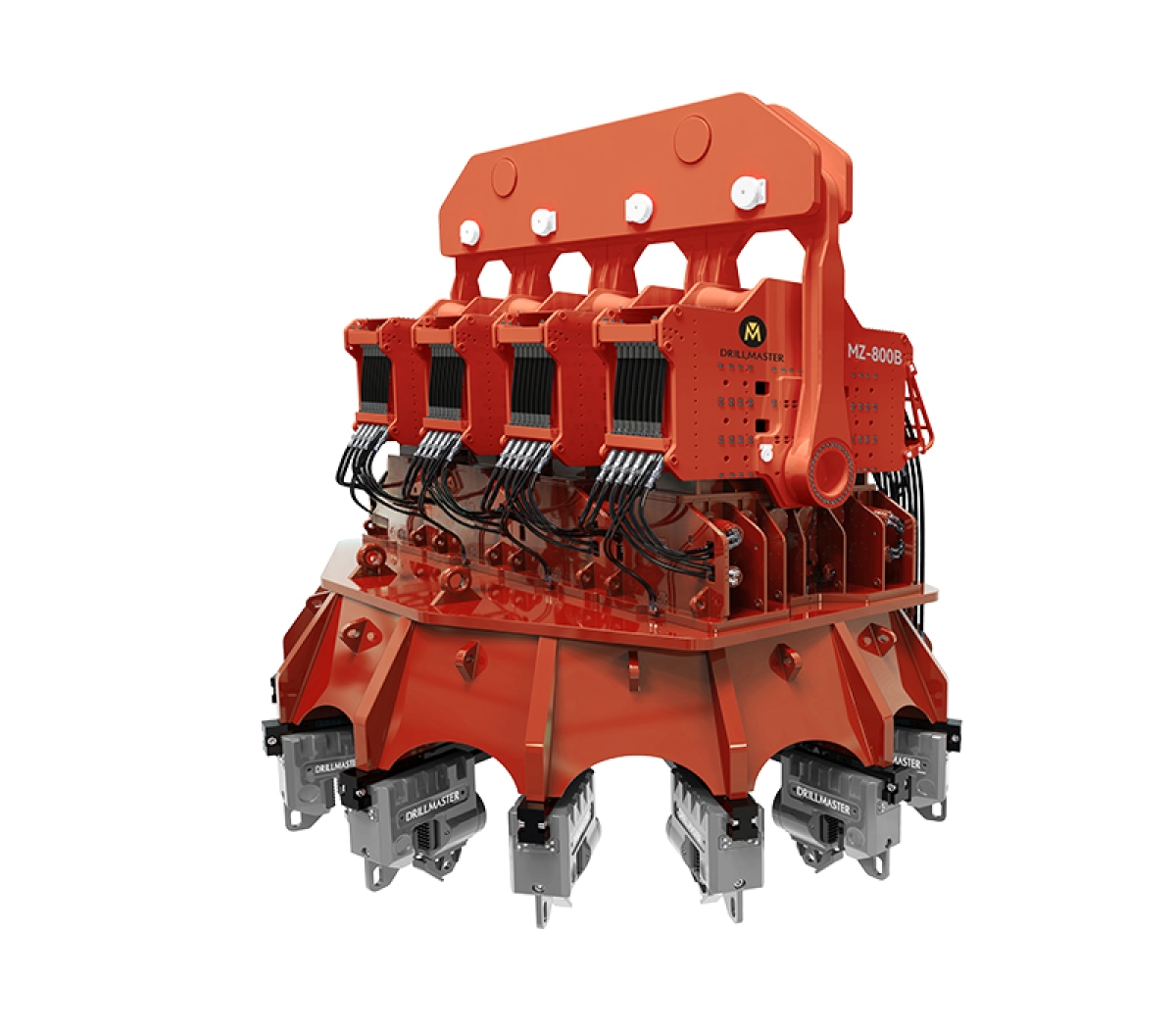

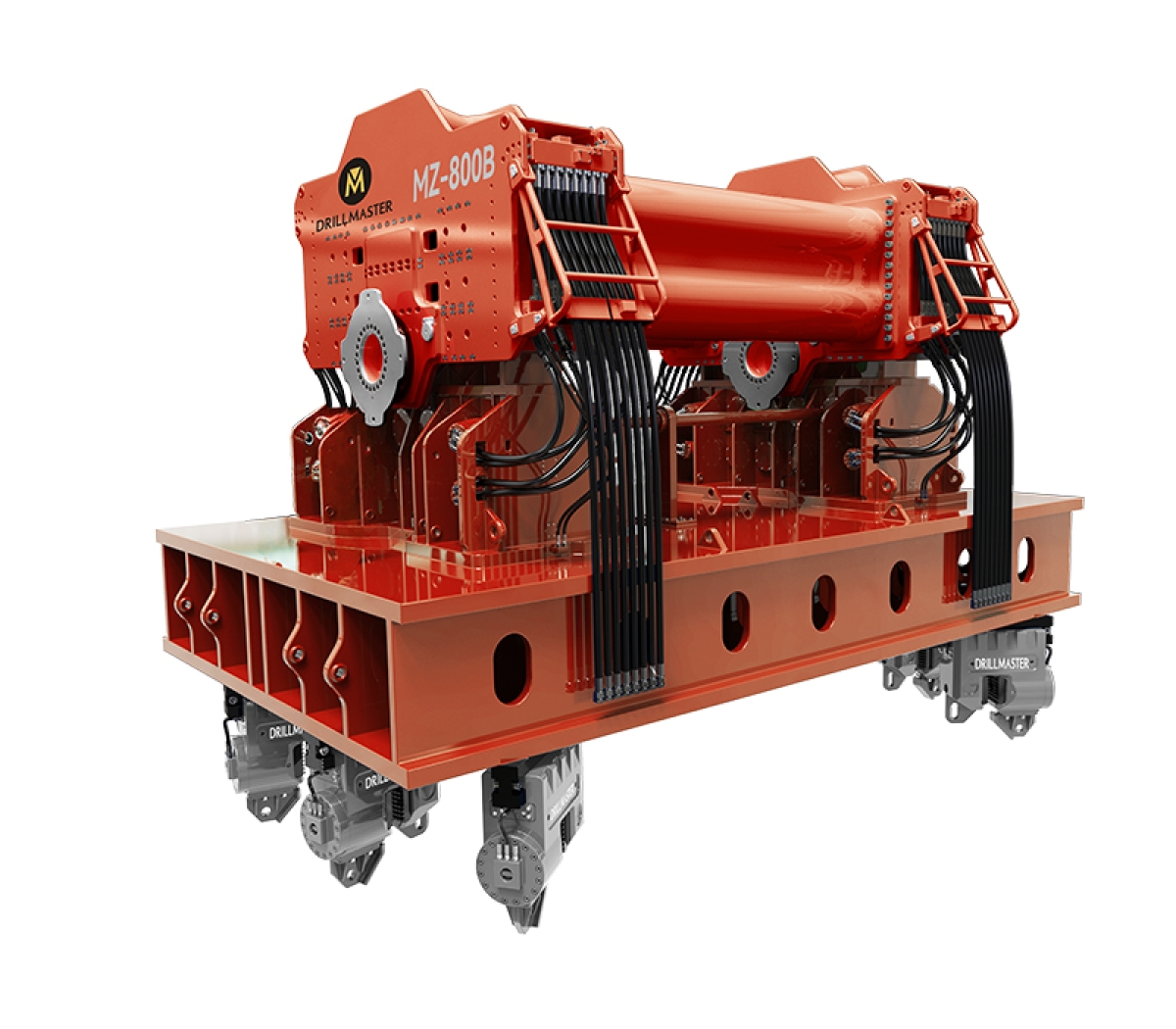

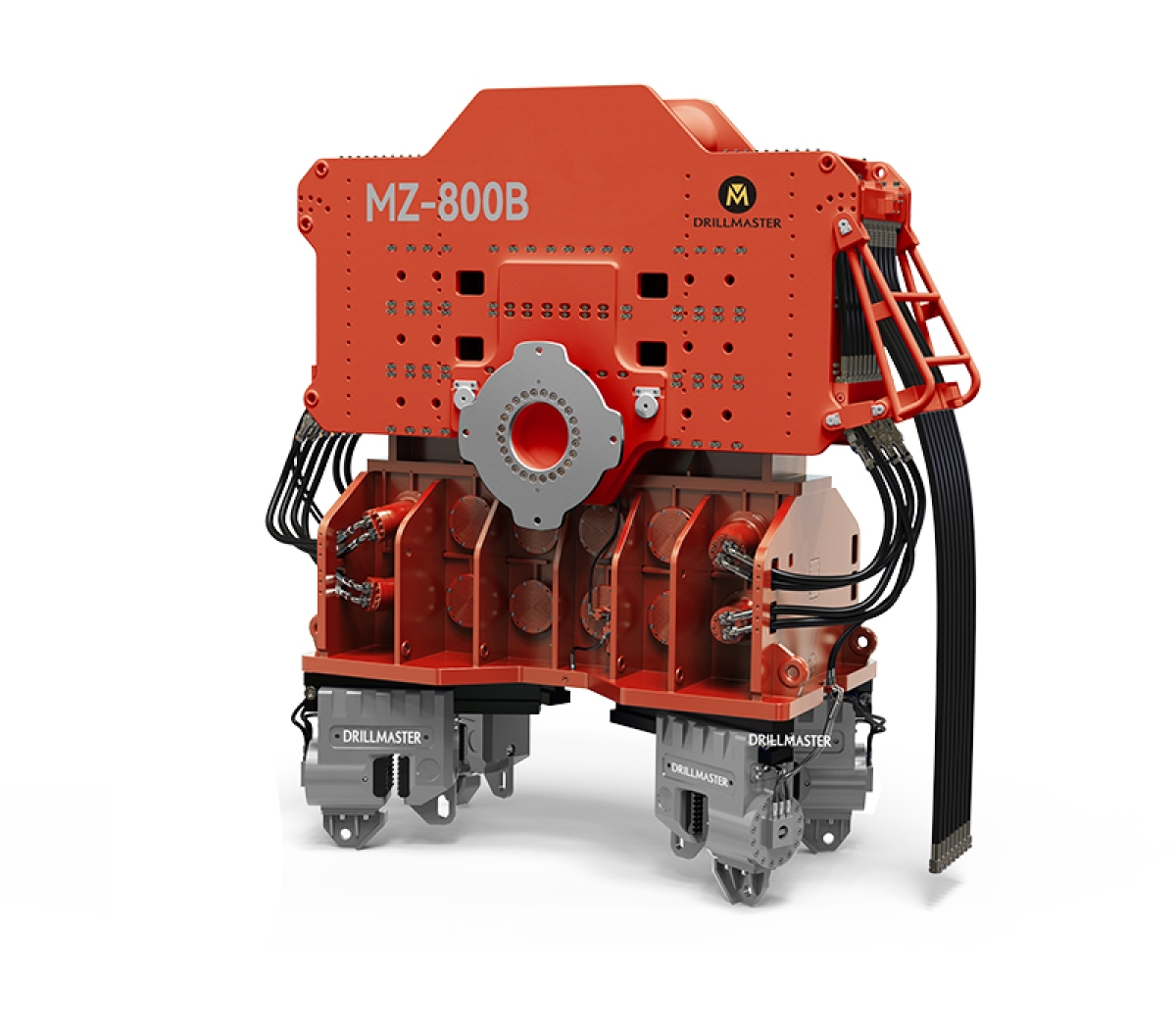

Crane Vibro Hammer Machine MZ-800B

Applications:

With an excitation force of 800 tons (approximately 8,000 kN), this model is primarily designed for driving extra-large-diameter steel pipe piles in bridge and offshore wind power projects.

INQUIRY NOW

Eccentric Moment
550 kg.m

Max. Frequency
1350 rpm

Centrifugal Force
11000 kN

Max. Line Pull Force
6000 kN

Max. Amplitude
35 mm

Dynamic Weight
66300 kg

DescriptionParametersRelated Projects

Description

This hammer can be configured in tandem drive or multi-unit synchronous operation.
Equipped with an upgraded pile-rolling function, it enables safer and more efficient integrated pile lifting and driving operations.

Parameters

Key Technical Parameter	MZ-800B
Eccentric Moment(kg.m)	550
Max. Frequency(rpm)	1350
Centrifugal Force(kN)	11000
Max. Line Pull Force(kN)	6000
Max. Amplitude(mm)	35
Max. Oil Flow(L/min)	3000
Length(mm)	5400
Width(mm)	2000
Height(mm)	4510
Dynamic Weight(kg)	66300
Pipe Pile Clamp Recommended	MZ-320DCX2
Sheet Pile Clamp Recommended	/
Recommended Power Pack	3500P
