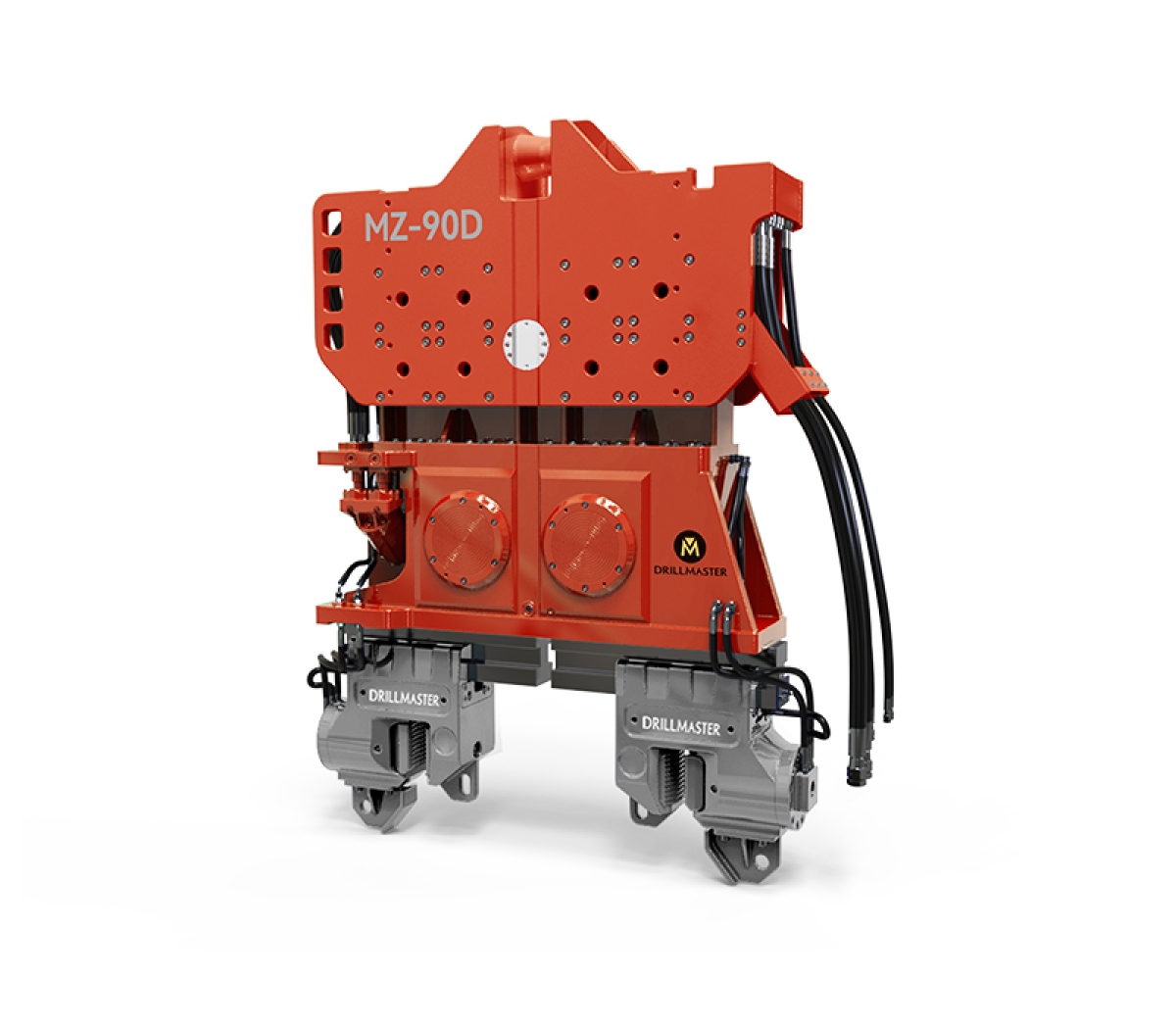

Hydraulic Vibro Hammer MZ-90D For Sheet Pile Driving

Applications:

Suitable for the driving and extraction of steel pipe piles used in Larssen sheet piles and temporary steel trestle bridges.

Eccentric Moment
26 kg.m

Max. Frequency
1800 rpm

Centrifugal Force
920 kN

Max. Line Pull Force
400 kN

Max. Amplitude
32 mm

Dynamic Weight
3100 kg

DescriptionParameters

Description

Compact and lightweight, it is the smallest model in the full range of hydraulic vibratory hammers.
Equipped with a 400P power pack, it is highly fuel-efficient.
Although this hammer is not a non-resonant type, it can still be operated in combination with a mobile crane.
It is suitable for construction in low headroom environments and is particularly ideal for extracting piles beneath bridges with limited clearance.

Key Technical Parameter	MZ-90D
Eccentric Moment(kg.m)	26
Max. Frequency(rpm)	1800
Centrifugal Force(kN)	920
Max. Line Pull Force(kN)	400
Max. Amplitude(mm)	32
Max. Oil Flow(L/min)	350
Length(mm)	1800
Width(mm)	500
Height(mm)	1760
Dynamic Weight(kg)	3100
Pipe Pile Clamp Recommended	MZ-80DCX2
Sheet Pile Clamp Recommended	MZJ-120
Recommended Power Pack	400P
