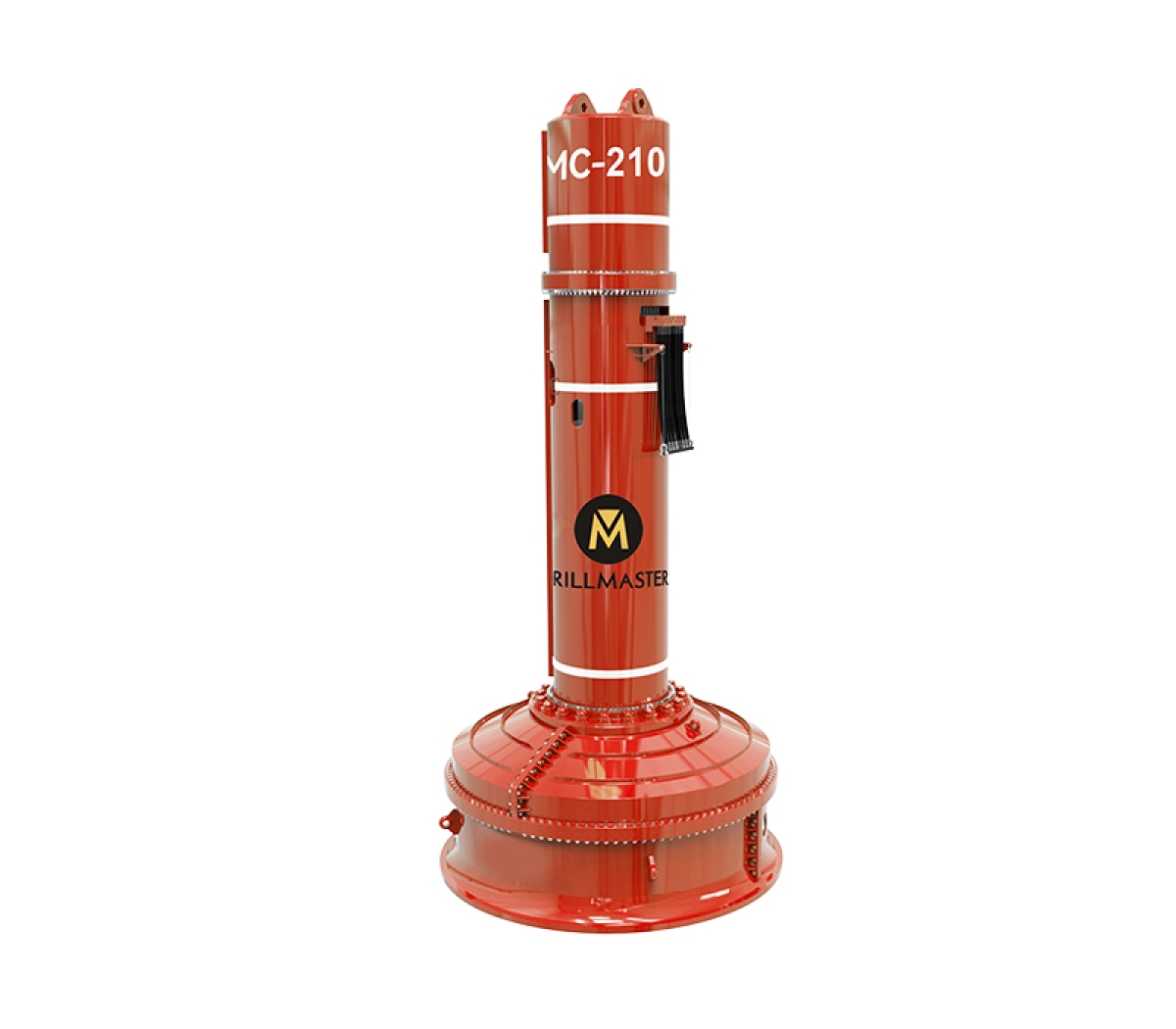

Offshore Hydraulic Impact Pile Driver Hammer MC-210

Applications:

With a 210-ton hammer core weight, this extra-large offshore impact hammer is specifically designed for large-diameter offshore wind power piles and oil and gas platform piles.
It features submersible capability, making it ideal for deep-sea construction projects.

INQUIRY NOW

Impact Energy
3600 KJ

Working Stroke
1700 mm

Impact Frequency
55/18 rpm

Ram Weight
210000 kg

DescriptionParametersRelated Projects

Description

The hammer core and drive cap are engineered with finite element analysis.
Featuring a circular hammer casing for enhanced sealing and reduced driving resistance.
It utilizes nano anti-corrosion technology and marine-grade coatings, making it suitable for high-salinity environments.
The hammer core is forged from alloy steel, delivering superior impact efficiency.
The power unit is equipped with a seawater cooling system, offering simplicity, efficiency, and convenience.

Parameters

Single Cylinder Lifting	MC-210
Impact Energy(KJ)	3600
Working Stroke(mm)	1700
Impact Frequency(rpm)	55/18
Ram Weight(kg)	210000
Length Excluding Pile Cap(mm)	17104
Width Excluding Pile Cap(mm)	3424
Height Excluding Pile Cap(mm)	2900
Weight Excluding Pile Cap(kg)	320000
Recommended Power Pack	30000PX2
