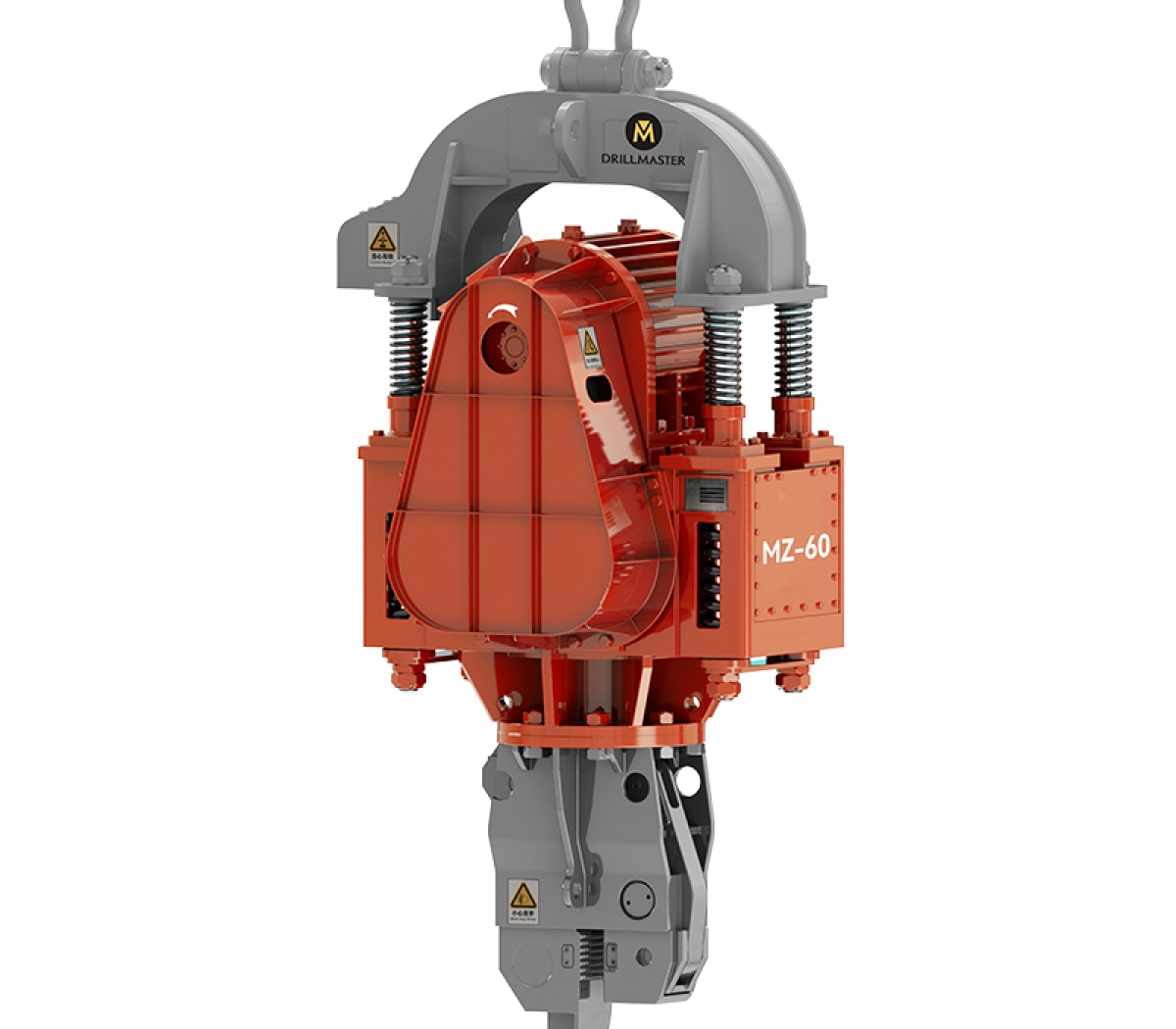

Small Vibro Hammer MZ-60 for Sheet Pile

Applications:

As the most commonly used electric vibratory hammer, it is widely employed for driving and extracting Larssen sheet piles and steel pipe piles in steel trestle bridges.
Due to its compact size and lightweight design, it often enables the driving and extraction of Larssen sheet piles and steel pipe piles using a single clamp.

INQUIRY NOW

Motor Power
60 KW

Eccentric Moment
50 NM

Centrifugal Force
492 kN

Max. Frequency
960 rpm

Max. Amplitude
12 mm

Max. Line Pull Force
215 kN

DescriptionParameters

Description

This model offers exceptional cost-effectiveness and can utilize on-site electricity as its power source.
Compared to hydraulic vibratory hammers of similar specifications, its cost is approximately one-third.
It is energy-efficient and environmentally friendly.

Parameters

Key Technical Parameter	MZ-60
Motor Power(KW)	60
Eccentric Moment(NM)	50
Centrifugal Force(kN)	492
Max. Frequency(rpm)	960
Max. Amplitude(mm)	12
Max. Line Pull(kN)	215
Length(mm)	1600
Width(mm)	1130
Height(mm)	2150
Weight Excluding Clamps(kg)	4500
Wire Cable(mm²)	35
Clamp	Single Clamp
Clamp Scope(mm)	/
Generator Capacity(kW)	200
