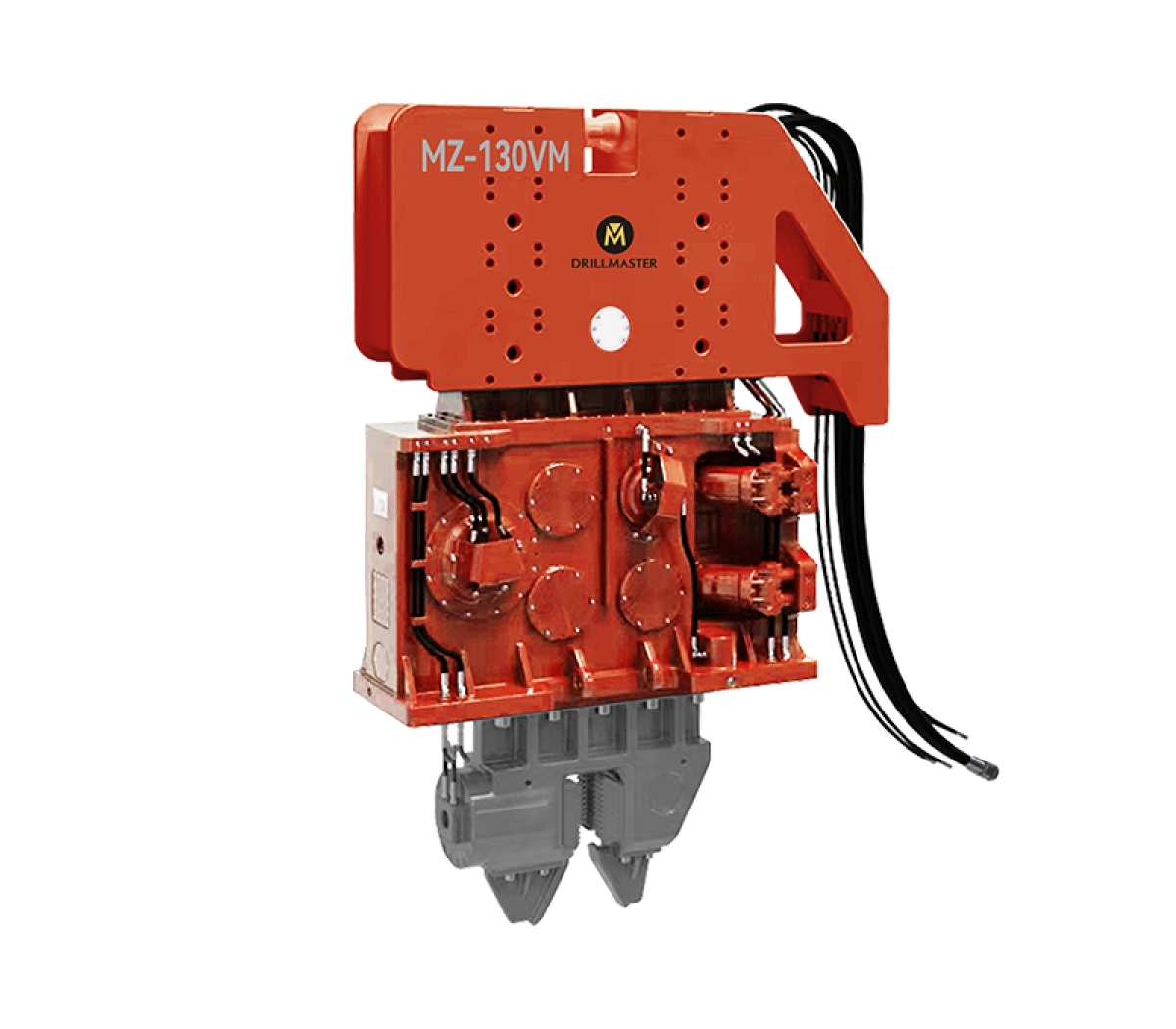

Resonance Free Vibratory Hammer Machine MZ-130VM For Sensitive Peojects

Applications:

Suitable for construction on sensitive foundations,
and ideal for projects involving Larssen sheet piles, steel pipe piles, and similar applications.

Eccentric Moment
0-23 kg.m

Max. Frequency
2300 rpm

Centrifugal Force
1340 kN

Max. Line Pull Force
500 kN

Max. Amplitude
15 mm

Dynamic Weight
4880 kg

DescriptionParameters

Description

This model features resonance-free operation during start-up and shutdown, high rotational speed, and adjustable eccentricity.
It can be adapted to the corresponding eccentric moment range for different soil layers, effectively meeting the pile driving requirements of varying ground conditions.
The 130-ton model is a medium-to-small-sized hammer.
Offering higher operational efficiency and greater mobility compared to static pile pressing equipment.

Key Technical Parameter	MZ-130VM
Eccentric Moment(kg.m)	0-23
Max. Frequency(rpm)	2300
Centrifugal Force(kN)	1340
Max. Line Pull Force(kN)	500
Max. Amplitude(mm)	15
Max. Oil Flow(L/min)	620
Length(mm)	2240
Width(mm)	550
Height(mm)	2230
Dynamic Weight(kg)	4880
Pipe Pile Clamp Recommended	MZJ-160
Sheet Pile Clamp Recommended	MZJ-80DCX2
Recommended Power Pack	600P
