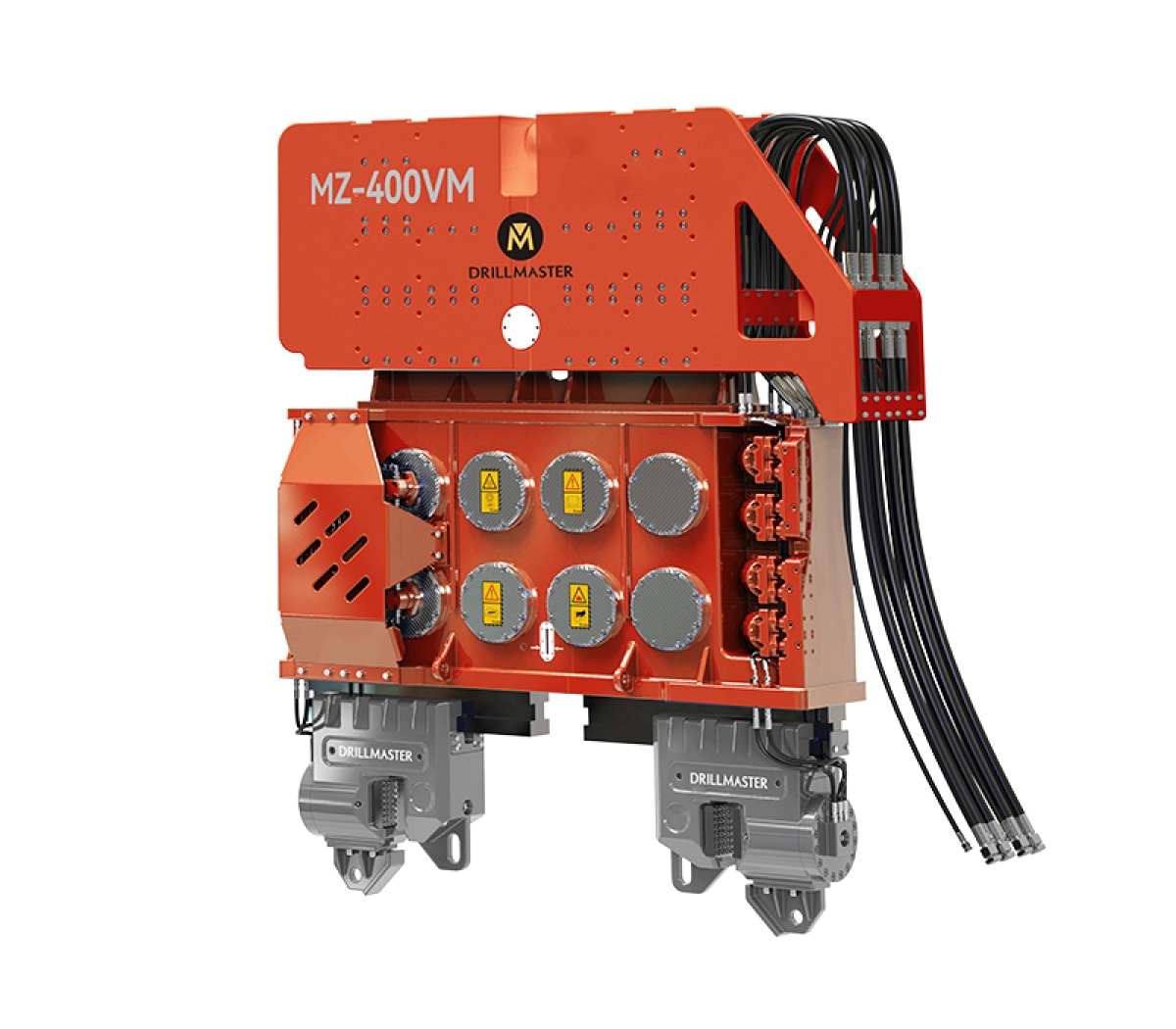

MZ-400VM Resonance Free Vibro Hammer for Piling

Applications:

It is ideal for construction on sensitive foundations.
Particularly for bridge projects and the installation of large-diameter, long steel pipe piles.

INQUIRY NOW

Eccentric Moment
0-90 kg.m

Max. Frequency
2100 rpm

Centrifugal Force
4350 kN

Max. Line Pull Force
1000 kN

Max. Amplitude
21.5 mm

Dynamic Weight
12800 kg

DescriptionParameters

Description

This model operates without resonance during start-up and shutdown, features high rotational speed, and offers adjustable eccentricity.
It can be tuned to the corresponding eccentric moment range for different soil layers, effectively meeting the pile driving requirements of varying ground conditions.
The MZ-400VM is a large vibratory hammer suitable for a wider range of pile specifications.

Parameters

Key Technical Parameter	MZ-400VM
Eccentric Moment(kg.m)	0-90
Max. Frequency(rpm)	2100
Centrifugal Force(kN)	4350
Max. Line Pull Force(kN)	1000
Max. Amplitude(mm)	21.5
Max. Oil Flow(L/min)	2050
Length(mm)	3100
Width(mm)	730
Height(mm)	2670
Dynamic Weight(kg)	12800
Pipe Pile Clamp Recommended	MZJ-320
Sheet Pile Clamp Recommended	MZJ-200DCX2
Recommended Power Pack	2000P
