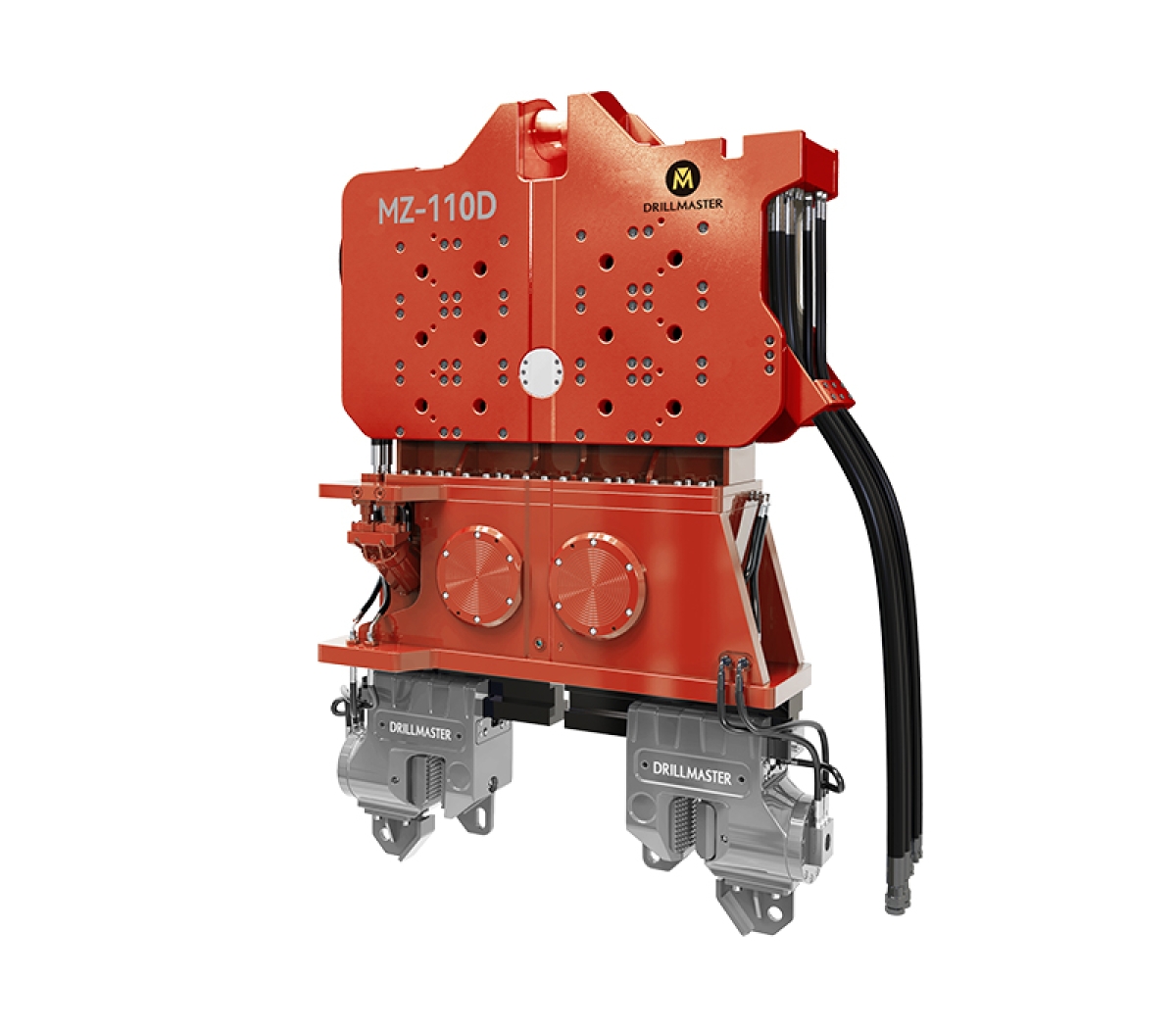

Hydraulic Vibrating Hammer MZ-110D Vibratory Pile Driver

Applications:

It is suitable for the driving and extraction of sheet piles, H-beams, and standard steel pipe piles.
This hammer is also well-suited for sheet pile and steel pipe pile operations in trestle bridge construction, including cofferdam projects.

INQUIRY NOW

Eccentric Moment
32 kg.m

Max. Frequency
1800 rpm

Centrifugal Force
1140 kN

Max. Line Pull Force
600 kN

Max. Amplitude
33 mm

Dynamic Weight
4000 kg

DescriptionParameters

Description

This hammer is a classic medium-duty model featuring a dual-eccentric design with an excitation force of 110 tons (approximately 1,100 kN).

Parameters

Key Technical Parameter	MZ-110D
Eccentric Moment(kg.m)	32
Max. Frequency(rpm)	1800
Centrifugal Force(kN)	1140
Max. Line Pull Force(kN)	600
Max. Amplitude(mm)	33
Max. Oil Flow(L/min)	480
Length(mm)	1950
Width(mm)	600
Height(mm)	2100
Dynamic Weight(kg)	4000
Pipe Pile Clamp Recommended	MZ-80DCX2
Sheet Pile Clamp Recommended	MZJ-160
Recommended Power Pack	500P
